Have you seen our new Chicago Pneumatic Construction Tools Products Page?

Chicago Pneumatic Air Files, Riveters, Nibbler, Shear and Caulking Gun

Air Files

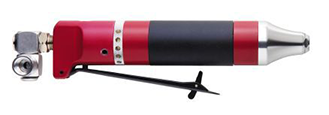

Model CP9705 Air File

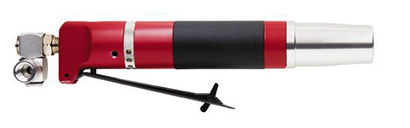

CP9705		 Model CP9710 Air File
CP9710
Features:
  • Air File 0.2" (5mm) Stroke
  • High Strokes per Minute and Powerful
  • Lock off Throttle to Prevent Accidental Start up
  • 360° Swivel Air Inlet
  • Rubber Handle Grip
  • Includes 4 Types of File: Flat, Half Round, Round, Triangular
 Features:
  • Air File 0.4" (10mm) Stroke
  • High Strokes per Minute and Powerful
  • Lock off Throttle to Prevent Accidental Start up
  • 360° Swivel Air Inlet
  • Rubber Handle Grip
  • Includes 4 Types of File: Flat, Half Round, Round, Triangular

Specifications

Model Part Number Strokes per Min Average Air Cons. Air Cons. at Load Overall length Net Weight Air Inlet Hose Int.
cfm I/s cfm I/s in. mm lb kg NPTF in. mm
CP9705 615 193 9705 12,000 1.5 0.7 6 2.8 8.0 204 1.2 0.56 1/4" 3/8 10
CP9710 615 193 9710 8,000 1.5 0.7 6 2.8 9.8 250 1.3 0.59 1/4" 3/8 10

Riveters

Model CP9883 Riveter
CP9883		 Model CP9884 Riveter
CP9884
Features:
  • Heavy Duty Air/Hydraulic Riveter
  • Compact Size and Composite Body
  • 3/16" (4.8mm) max. Capacity
  • Heavy Pulling: up to 1,900lbs (865kg)
  • Low Vibration and Low Noise Level
  • Includes: 1/8", 5/32" & 3/16" (3.17, 4 & 4.4mm) Nose Pieces
 Features:
  • Heavy Duty Air/Hydraulic Riveter
  • Compact Size and Composite Body
  • 1/4" (6.4mm) max. Capacity
  • Heavy Pulling: up to 3,500lbs (1600kg)
  • Low Vibration and Low Noise Level
  • Includes: 3/16"& 1/4" Monobolt (4.8 & 6.4mm) Nose Pieces

Specifications

Model Part Number Max. Axial Pulling Load Average Air Cons. Air Cons. at Load Overall length Net Weight Air Inlet Hose Int.
lb @ 85psi kg cfm I/s cfm I/s in. mm lb kg NPTF in. mm
CP9883 894 109 8830 1,900 865 2.3 1.1 9.1 4.3 11.8 300 3.2 1.46 1/4" 3/8 10
CP9884 894 109 8840 3,530 1,600 2.3 1.1 9.1 4.3 12.2 310 4.2 1.90 1/4" 3/8 10

Nibbler, Shear and Caulking Gun

Model CP835 Nibbler
CP835		 Model CP785S Shear
CP785S
Features:
  • Heavy duty nibbler
  • Rugged head and 0.177" (4.5mm) diameter punch cuts steel up to 16 gauge (0.06" - 1.5mm) and aluminum up to 10 gauge (0.102" - 2.6mm)
  • Easy access to punch and die for quick replacement
  • Lever throttle for low speed starting
  • 4 optional cutting positions
 Features:
  • Heavy duty pistol shear
  • Powerful efficient 0.5 hp (380W) motor to cut up to 18 gauges steel (0.04" - 1.1mm)
  • Triple idler planetary gearing
  • Ergonomic handle design
Model CP9885 Caulking Gun
CP9885
Features:
  • Standard caulking gun
  • Trigger controlled material flow
  • Accepts standard cartridges: 2"x8-1/2" (50x210mm)


Specifications

Model Part Number Strokes per Min Average Air Cons. Air Cons. at Load Overall length Net Weight Air Inlet Hose Int.
cfm I/s cfm I/s in. mm lb kg NPTF in. mm
Heavy Duty Nibbler
CP835 T022550 2,750 4.2 2.0 17 8.0 8.5 216 1.3 0.59 1/4" 3/8 10
Pistol Shear
CP785S T023200 2,400 3.7 1.8 15 7.3 9.0 229 1.9 0.86 1/4" 3/8 10
Caulking Gun
CP9885 615 197 9885 - 4.2 2.0 16.8 7.9 10.6 270 2.3 1.04 1/4" 3/8 10
